Audio Podium

About Audio Podium

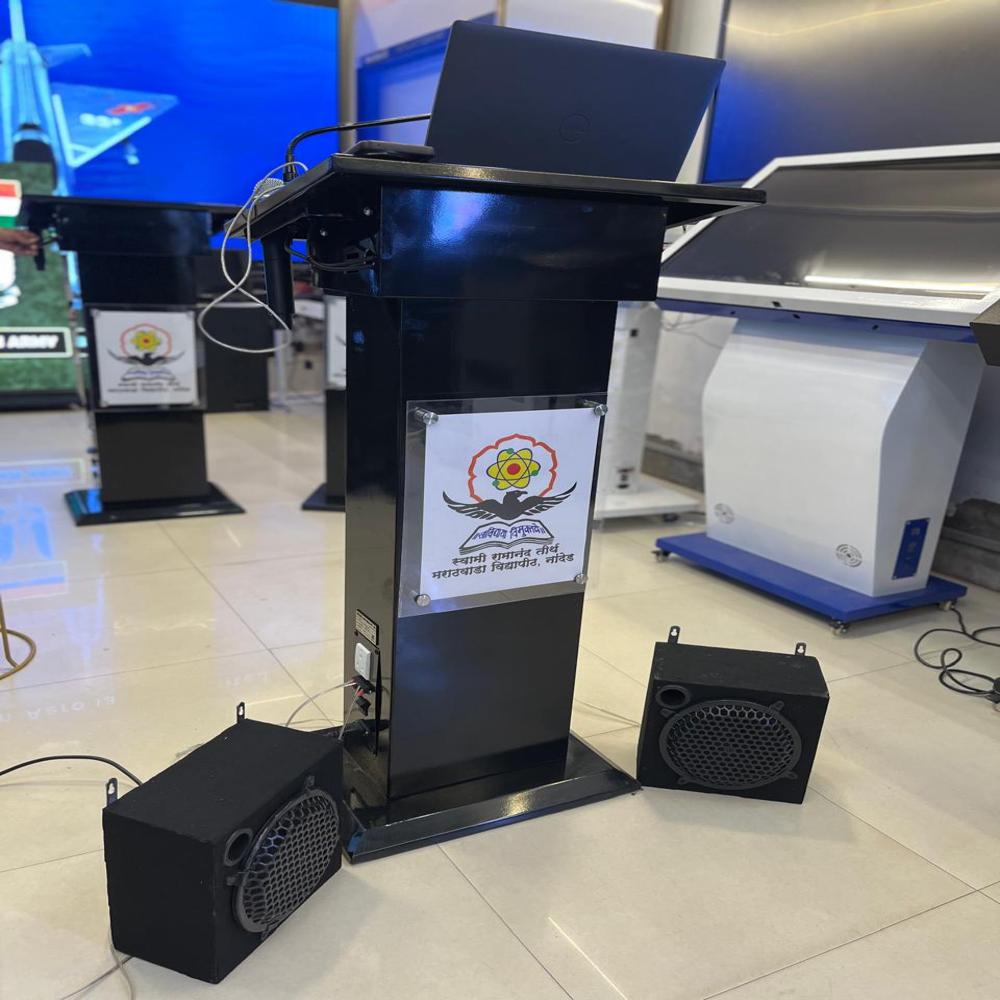

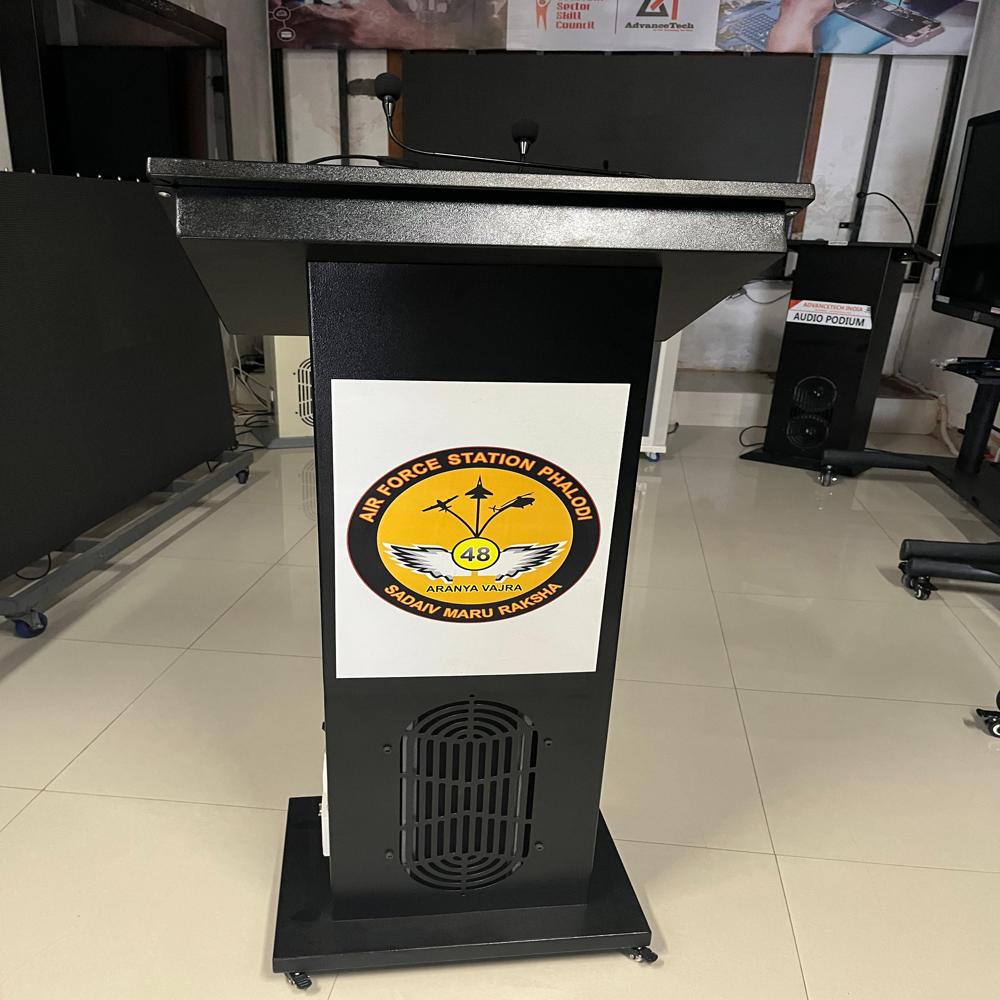

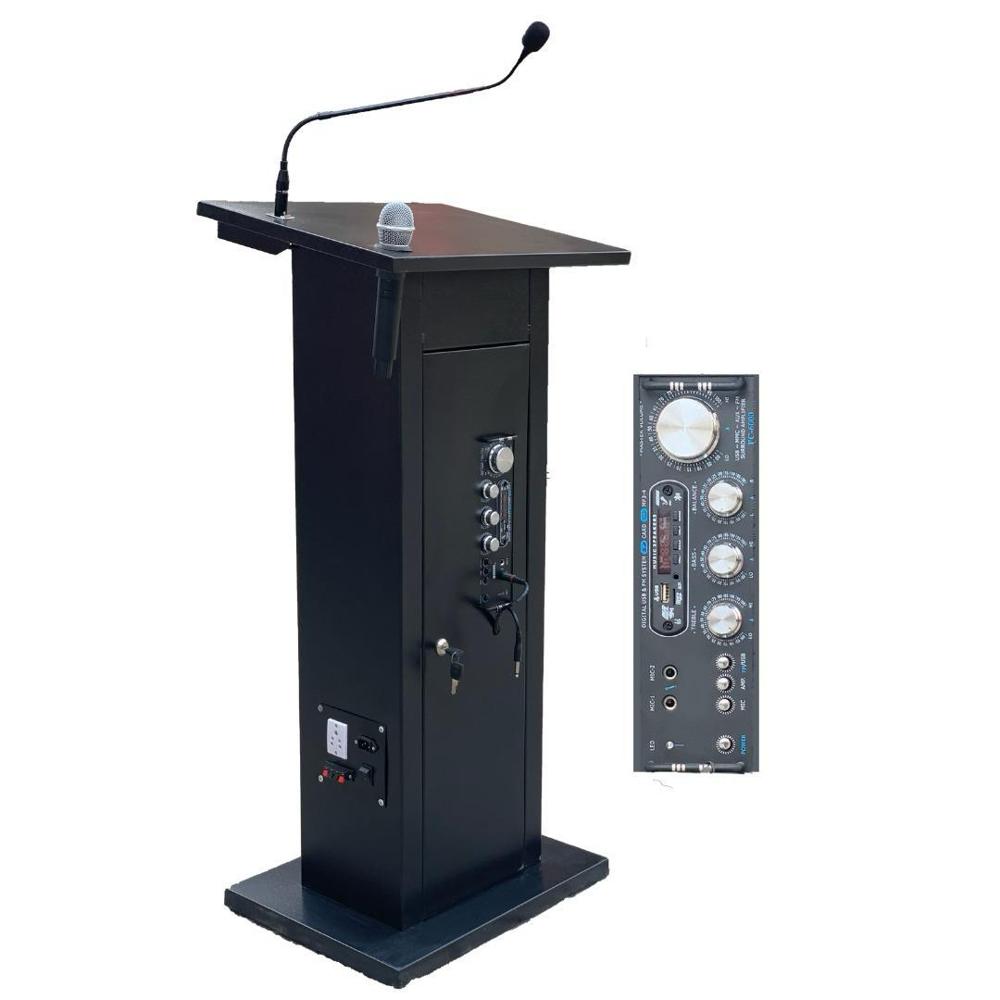

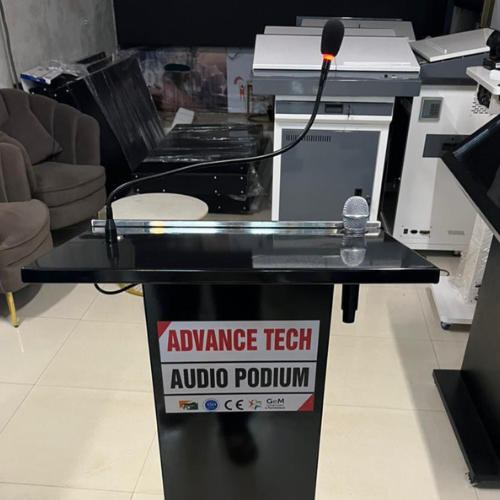

Audio podium

Mild steel powder coated finished body with multiple input ports.

Standalone power operated working lecture delivery and announcement feature.

Inbuilt Amplifier offering high sound quality , to be interfaced with speakers and input via multiple sources

• Power Output 100W Max ,THD, 60W RMS at 5% THD, 50W RMS at 2% THD
•  Output Regulation 2 dB, no load to full load at 1kHz
• Input Channels 2 Mic 0.65mV/4.7k, 1 Aux 100mV/470 k, 1 USB, 1 BLUETOOTH, 1 FM, Speaker connector2. 1
• Multimedia Amplifier Compatible with DVD, VCD, DTH, and LCD and Digital Display with remote high performance
• Frequency Response 50-15,000Hz 3dB
• Signal to Noise Ratio 60dB
• Tone Controls Bass: -10dB at 100Hz, Treble: -10dB at 10kHz,
• Power Supply AC: 220-240V 50/60Hz, DC: 12V (12V Car Battery)
• Power Consumption AC: 160VA DC: 3A
• External Speakers to be integrated in body with amplifier and connected with amplifier offering echoless voice. Integration of speaker with amplifier must be seamless for smooth audio
• This is a general-purpose 40 Watt 2 Speakers (40 watt each speaker) which is generally used for all types of audio projects. It has a balanced frequency response and high efficiency. Very good high-range response.
• Power 40W
• Sound pressure level 943db
• Sensitivity 100(dB/W)
• Professional high quality PA Gooseneck Microphone 1 no , Wireless handheld 1 no and Collar Lapel Microphone -1 no are suitable for various PA applications such as on Lecterns and Podiums, Open Conferences etc. The sleek and slender
• design makes the microphones unobtrusive.
• Wide frequency response.
• High front-to-back rejection for more gain before feedback.
• Built-in XLR socket.
• Frequency Response 20-18,000Hz
• Impedance 1000
• Sensitivity 7.5mV/Pa
• Power Source 1.5V-9V DC

A dedicated plate must be available in the body itself in which the user can avail the charging facility directly through audio lectern

Certification - Should be CE,FCC,RoHS certified

Technical Details
